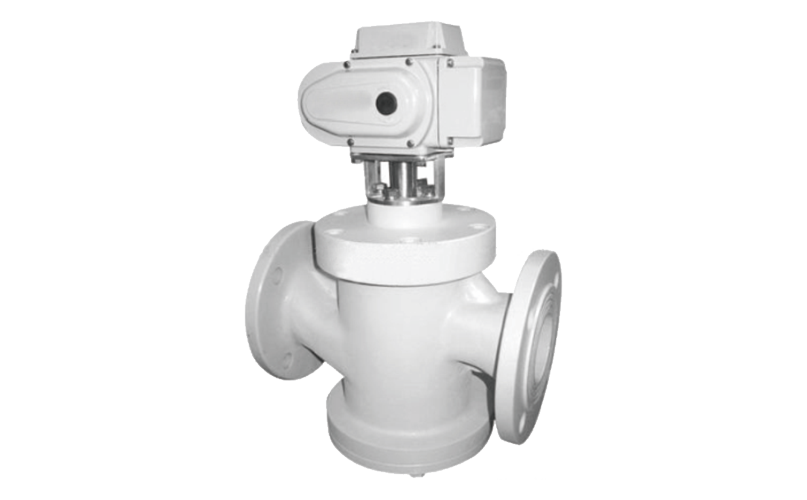

Dynamic Balance Electric Control Valve

A valve that integrates pressure difference self balancing and electric regulation functions, automatically offsets pressure fluctuations in the pipeline network through a built-in stabilizing mechanism, ensuring precise flow control (error ≤ 5%). Suitable for variable flow systems such as HVAC and chemical engineering, it has the advantages of energy saving (reducing consumption by 6-20%), anti-interference, and fast response (≤ 10 seconds), simplifying installation and improving system stability.

Get a quote

Wide applicability
Special structural design
Intelligent temperature control integrated design
Simplify installation and operation
Intelligent control compatible
Precise temperature control and comfort
Energy saving and efficient system
Dual function integration

Wide applicability

Wide applicability
01
Temperature resistance of 0-150 ℃, suitable for variable flow systems in HVAC, chemical, pharmaceutical and other fields, supporting multiple media such as water and steam.

Special structural design

Special structural design
01
Adopting a split design (upper half flow regulation+lower half pressure balance), it quickly responds to pressure changes and extends the life of the actuator.

Intelligent temperature control integrated design

Intelligent temperature control integrated design
01
The proportional integral algorithm accurately adjusts the flow rate of cold and hot water to achieve energy-saving and temperature control in air conditioning systems during winter and summer;
02
The driver and valve body adopt a threaded quick installation structure, which allows for quick disassembly of the valve core during maintenance.

Simplify installation and operation

Simplify installation and operation
01
No need for simultaneous pipeline design, saving installation costs and space;
02
The phased use or partial renovation of the project does not affect the overall hydraulic balance and reduces maintenance complexity.

Intelligent control compatible

Intelligent control compatible
01
Supporting proportional integral adjustment, it can be directly connected to the building BA system to achieve remote intelligent management and fault feedback.

Precise temperature control and comfort

Precise temperature control and comfort
01
Constant flow improves temperature regulation accuracy (± 5% error), suitable for end devices such as air conditioning units, optimizing environmental comfort.

Energy saving and efficient system

Energy saving and efficient system
01
Energy saving of 6-20% compared to traditional systems, reducing water pump energy consumption; Simultaneously shorten the time for hydraulic balance debugging and improve operational efficiency.

Dual function integration

Dual function integration
01
Integrating dynamic differential pressure balancing valve and electric regulating valve, the system automatically absorbs pressure fluctuations through a built-in constant pressure device, ensuring that valve opening adjustment is not affected by pipeline pressure interference and maintaining flow stability.

Main Component Materials

Valve form	model	Nomina diameter DN (mm)	Pressure difference range (m ³/h)	Flow range (m ³/h)	work pressure	flow error	fluid temperature
two-way	EDRV1	DN25	30-300	0.2-2.9	PN16	5%	0-100℃
	EDRV2	DN32	30-300	0.5-4.7
	EDRV3	DN40	30-300	1-7.7
	EDRV4	DN50	30-300	2-12.1
	EDRV5	DN65	30-300	3-20.4
	EDRV6	DN80	30-300	5-30.8
	EDRV7	DN100	30-300	10-45.3
	EDRV8	DN125	30-300	15-70.7
	EDRV9	DN150	30-300	20-101.8
	EDRV10	DN200	40-400	30-110

Performance Specifications & Dimensions

Nominal pressure PN

1.6/2.5/4.0/6.4
Shell F

P x 1.5
Sealing Pressure

P x 1.1
Medium

Hot and cold water, 50%, ethylene glycol, steam
Temperature (℃)

0~100℃

Model		Nomina Diameter DN(mm)	L	H	H1	D	K	C	n-Φd	itinerary (mm)	Execution process △Pmax	Close th pressure difference
two-way	three-way	Nomina Diameter DN(mm)	L	H	H1	D	K	C	n-Φd	itinerary (mm)	(KPa)
VB7200-50	VB7300-50	50	230	450	145	165	125	20	4-18	45	500	500
VB7200-65	VB7300-65	65	290	468	150	185	145	20	4-18	45	400	400
VB7200-80	VB7300-80	80	310	475	185	200	160	20	8-18	45	300	300
VB7200-100	VB7300-100	100	350	475	205	220	180	22	8-18	45	300	300
VB7200-125	VB7300-125	125	400	504	230	250	210	22	8-18	45	200	200
VB7200-150	VB7300-150	150	410	532	280	285	240	24	8-22	45	100	100
VB7200-200	VB7300-200	200	520	550	280	340	295	30	12-22	45	100	100

Note: The above data is for reference only. For details, please consult the company's sales department.
