Quick Discharge Gate Valve

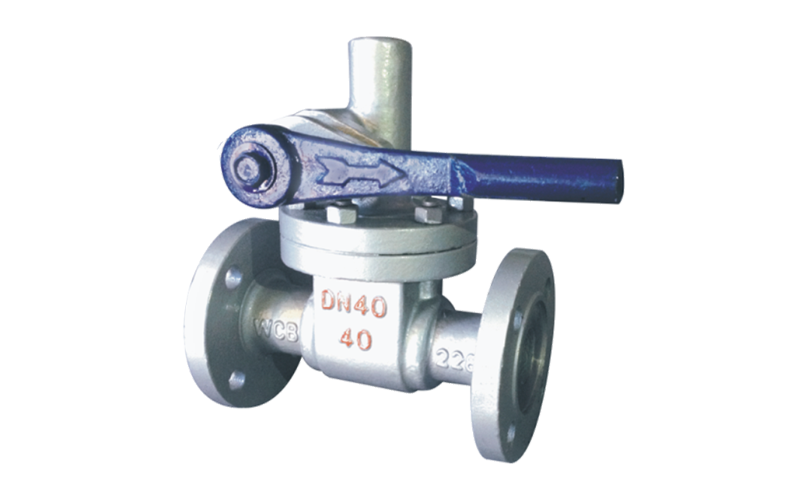

A pipeline control equipment evolved from gate valves, which achieves rapid opening and closing by driving the valve stem up and down through gear rotation of 90 °. It has the characteristics of compact structure, strong sealing, and low operating torque. The valve core guide seat and throttle hole are designed to form a vortex self-cleaning sealing surface during discharge, which is suitable for efficient impurity discharge in systems such as boilers and industrial pipelines. The material can be selected from pressure resistant alloys such as cast steel to meet the requirements of high temperature and high pressure working conditions.

Get a quote

Standardization adaptability
Multi channel sewage discharge capacity
Modular compact structure
Quick opening and closing with low operating torque
Pressure self tightening sealing structure
High strength and corrosion-resistant material

Standardization adaptability

Standardization adaptability
01
Compliant with standards such as GB/T12237 and JB/T6900, the flange size is compatible with conventional pipeline systems and suitable for industrial boilers and municipal pipeline networks with PN ≤ 2.0MPa.

Multi channel sewage discharge capacity

Multi channel sewage discharge capacity
01
Supporting single channel or five channel synchronous discharge, the guide seat and throttle hole cooperate to form a stepped discharge path, improving the efficiency of boiler sludge discharge.

Modular compact structure

Modular compact structure
01
The clamp type valve body connection design reduces the overall weight by 20%, reduces leakage points at the branch pipe welding interface, and supports non-stop maintenance.

Quick opening and closing with low operating torque

Quick opening and closing with low operating torque
01
The gear driven valve stem can rotate 90 degrees to complete the lifting action, and the switch status is visualized. The operating torque is reduced by 30% -50% compared to traditional valves.

Pressure self tightening sealing structure

Pressure self tightening sealing structure
01
The asbestos packing sealing ring enhances its sealing performance with the increase of medium pressure, combined with a dual seal design to achieve zero leakage, and the self-cleaning function of the sealing surface vortex can prevent impurities from adhering.

High strength and corrosion-resistant material

High strength and corrosion-resistant material
01
Made of copper alloy, cast steel or stainless steel material, the valve disc is treated with boronization, which can withstand high temperature and high pressure working conditions and effectively resist medium erosion.

Main Component Materials

Part Name	Material
Valve body and valve cover	Cast steel WCB
Valve stem gear shaft	Chromium stainless steel 2Cr13
Valve disc and seat	Chromium stainless steel 2Cr13
filler	Graphite asbestos rope
handle	Cast steel WCB
spring	Copper

Performance Specifications & Dimensions

Nominal Pressure PN

1.6/2.5/4.0
Shell F

Px1.5
Sealing Pressure

Px1.1
Medium

Water, Steam
Temperature (℃)

≤425℃

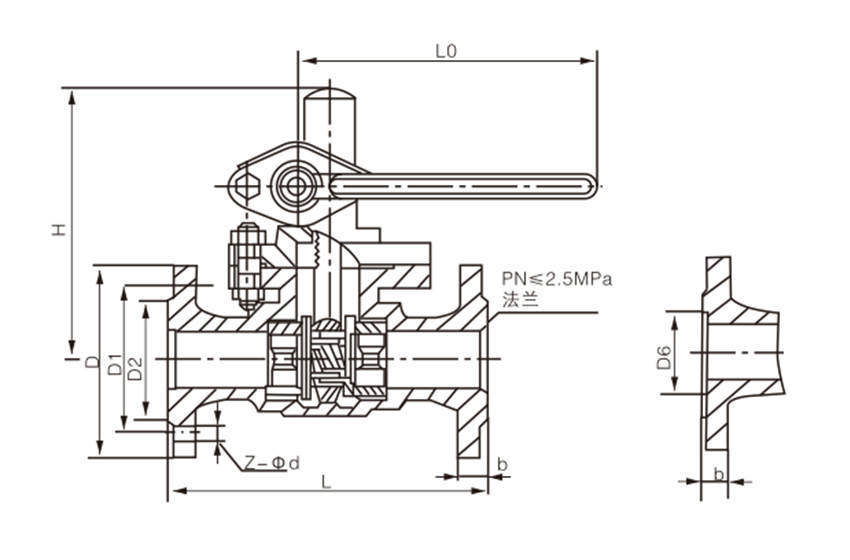

Nominal Diameter DN(mm)	PN1.6MPa									Weigh (kg)
Nominal Diameter DN(mm)	L	D	D1	D2	D6	b	Z-Φd	H	L0	Weigh (kg)
25	160	115	85	65	-	14	4-14	160	180	10
32	200	135	100	78	-	16	4-18	180	200	11
40	230	145	110	85	-	16	4-18	220	220	16
50	250	160	125	100	-	16	4-18	230	240	20
65	265	180	145	120	-	18	4-18	250	280	28
80	280	195	160	135	-	20	8-18	280	350	38
PN2.5MPa
25	160	115	85	65	-	16	4-14	160	180	10
32	200	135	100	78	-	18	4-18	180	200	11
40	200	145	110	85	-	18	4-18	220	220	16
50	250	160	125	100	-	20	4-18	230	240	20
65	265	180	145	120	-	22	8-18	250	280	28
80	280	195	160	135	-	22	8-18	280	350	38
PN4.0MPa
25	160	115	85	65	58	16	4-14	160	180	10
32	180	135	100	78	66	18	4-18	180	200	11
40	230	145	110	85	76	18	4-18	220	220	16
50	250	160	125	100	88	20	4-18	230	240	20
65	265	180	145	120	110	22	8-18	250	280	28
80	280	195	160	135	121	22	8-18	280	350	38

Note: The pressure range is 1.6MPa~4.0MPa. The above data is for reference only. Please consult the company's sales department for details.
